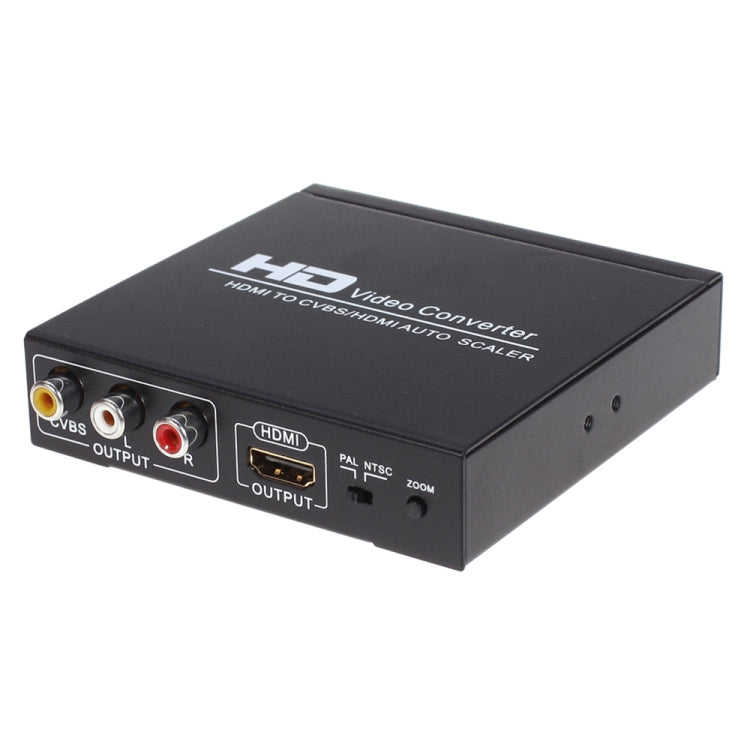

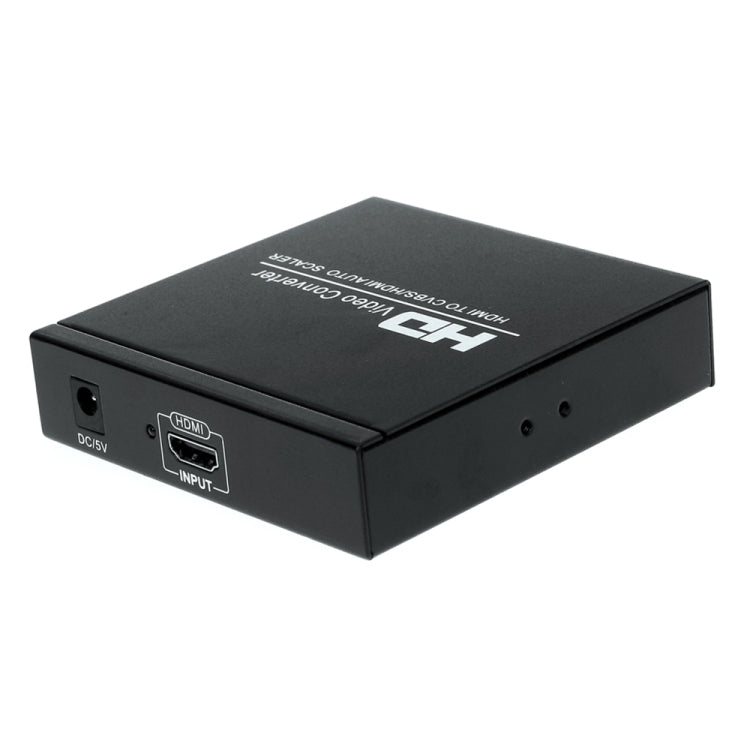

NK-10II HDMI to HDMI/CVBS/AVスケーラーボックスビデオコンバーター、HDMI to HDMI/CVBS/AV

Features
1. To apply new generation low power consuption digital chip processing. 24 hours non-stop working, low calorific value, working steady.
2. Can wipe of the shaking and delaying phenomenon when the image move quickly by 3D compensation technique.
3. To adopt DCDI process technique.
- The patent technology DCDI which was R&D by Faroudya. Can remove the serrated twill in the video of the Normal High defitnion converters.
- The adopted Bad edit detection ability can test all kinds of video code stream of the original code stream of the films. And rebuilt a more accurate video signals. By this way, it can formed a no dynamic material image under the completely vertical resolution.
- The adopted True Life Enhancement technique can distinguish the details of the picture. Such as the microgroove of the skin, spot or hair. The processing of the details make the picture looking more clearly and lively.
- To adopt the Motion Adaptive processing technique. When reduce the noise point, but not produce spot. To really restore the original face of the of the pictures.
- The adopted the Dynamic testing technology can selectly briefly filter the static pictures. And use the picture memory technology to memory the Chroma which was asked to be stored.
- After adopting the technolgy, the needless fancy shade will not appear When in the scene of where color crisscrossed and changed: Such as the tiled roof, the clothe with crossed pattern, and the falling leaves.
4. To adopt Sacler video processing, and can Scaler Down the high defintion HDMI signal into CVBS output.
5. The build-in HDMI video/audio distribution can bypass output the High definition HDMI signal.
6. The build-in video DAC can process HDMI digital video signal, and convert into analog stereo output.

Specifications
1. Hardware converting, plug and play, no need of any software drive.
2. Compatible with HDMI 1.3
3. Support NTSC and PAL, to standard output

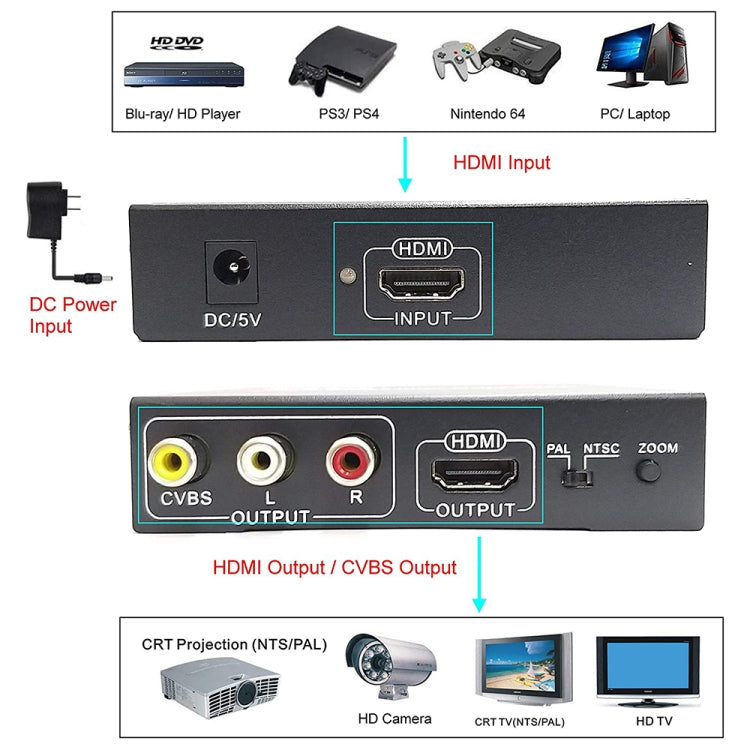

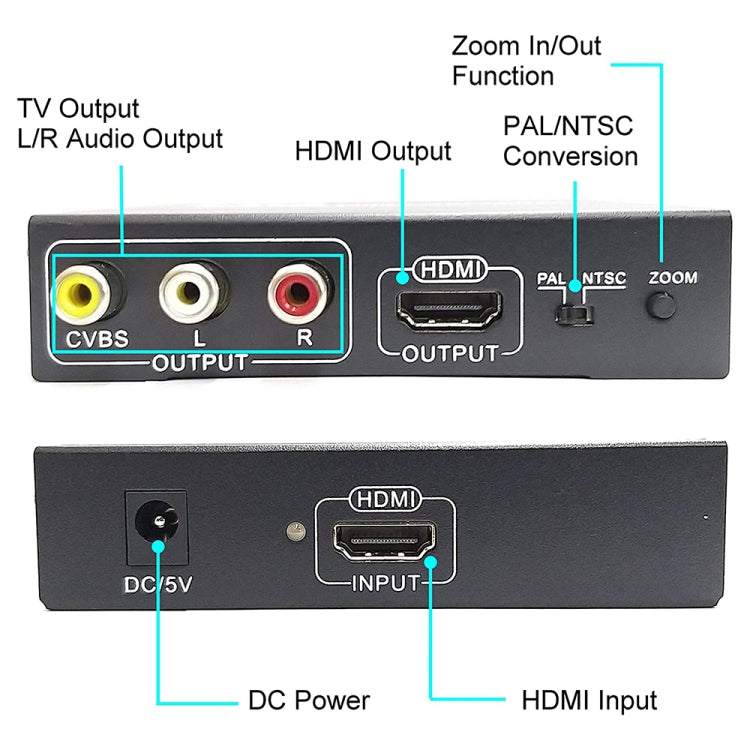

4. One hdmi input, One hdmi output, one cvbs output, and one L/R stereo output.
5. HDMI Input mode: 480i, 480P, 576i, 576P, 720P, 1080I, 1080P
6. Compatible with DVI mode: 800x600, 1024x768, 1280x720, 1280x1024, 1920x1080/@60hz Etc.
7. HDMI output, With AV sync output
8. Av video output: PAL NTSC optional
9. Video output: L/R sound channel
10. Size: 100mm(W)x105mm(D)x 25mm(H)

Platform
1. Can be used in the KTV dream works, can be a expanded platform.
2. AV signal can be easily transferred. Esaly connection, HDMI input, and hdmi output.
- Do not take up the original machine output HDMI interface.
3. Can be used in the imprtant meeting system. Can be a display platform.
- Can be controlled in a distance, HDMI output can be connected with the currently showing platform. And can cut off the AV output signal source at any time, to prevent the unrelated informations was viewed by the unrelated person.
3. Can be used in the important operation of the treatment.
- When input the HDMI signals, and output the hdmi signal at the same time, Can be used to watch the operation currently. And AV signals will be transferred to the Monitoring room, so that the operation can be monitored at a remote place.
