FEELWORLD LUT7 PRO 1920x1200 7インチ LCDスクリーン HDMI 4K ハイライト 2200ニット タッチカメラモニター、LUT7 PRO

Panel characteristics:
1. Screen size: 7 inches IPS
2. Resolution: 1920x1200 pixels
3. Dot pitch: 0.07875 (H)x0.07875 (W) (mm)
4. Screen ratio: 16:10
5. Brightness: 2200cd/m2 (light sensor)
6. Contrast ratio: 1200:1
7. Backlight source: LED
8. Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)

Enter:
1. 1x HDMI: HDMI

Output:
1. 1x HDMI: HDMI
2. 1x DC: DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can power SLR or mirrorless camera)

Audio:
1. Audio: headphone jack, speaker

HDMI input/output format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98), 4096×2160p (24Hz)

Other specifications:
1. Input voltage: DC7-24V
2. Power consumption: greater than or equal to 20W
3. Working temperature: -20-50 degrees Celsius
4. Storage temperature: -30-60 degrees Celsius
5. Installation method: 1/4-20 standard quick installation screw hole (left, right, bottom)
6. Battery gusset: F970 battery gusset
7. Stand-alone size: 190Lx126Hx27D (mm)
8. Stand-alone weight: 450g
9. Note: You need to press the power button when shutting down, and you cannot unplug the power cord directly

Product Features:
1. Support 3D LUT Log gray film conversion to Rec709 monitoring, user-defined 3DLUT upload
2. Support touch menu
3. The F970 external power supply design can be used for external equipment installation and power supply, easy to install and disassemble, simplifying the photography equipment
4. Full HD 1920x1200, high contrast ratio: 1200:1, high brightness: 2200cd/m2, 160-degree ultra-wide-angle IPS good visual experience, full color reproduction display
5. Light sensing technology, automatic brightness adjustment
6. DC power output interface, you can connect an additional optional fake battery power cord to supply power to the SLR camera or mirrorless camera to extend the camera shooting time
7. The thin and portable design is a good companion for camera stabilizers, rocker arms, camera recorder kits, handheld stabilizers, and camera jacks

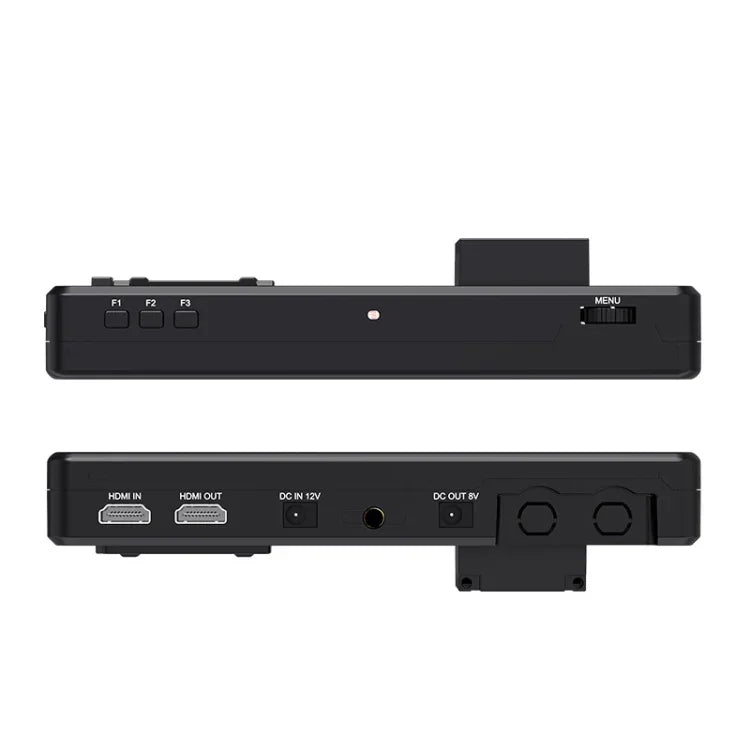

8. LUT7 PRO provides filmmakers with the advantages of a large built-in camera display without adding to the trouble of setting up the camera. The compact and lightweight design condenses high-end monitoring functions and can be connected to almost any camera. It has a large bright touch screen on the front, a signal interface at the bottom, and an SD card slot on the side. There is also an F970 battery buckle and an installation/power supply kit on the back of the monitor, which can be externally attached with a Sony F970 battery buckle Board equipment and provide power for it, such as wireless video transmission, LED lights, etc. There are standard 1/4 inch mounting points on the bottom and left and right sides, which can be used to mount to cameras and other equipment. This design detail makes LUT7 PRO easy to connect to the camera and easy to share with team members or customers on site.

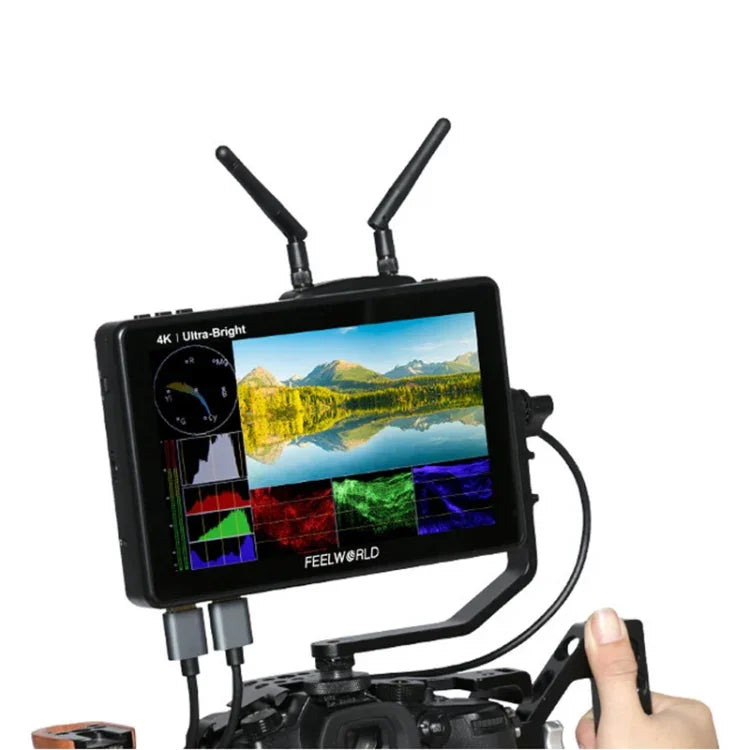

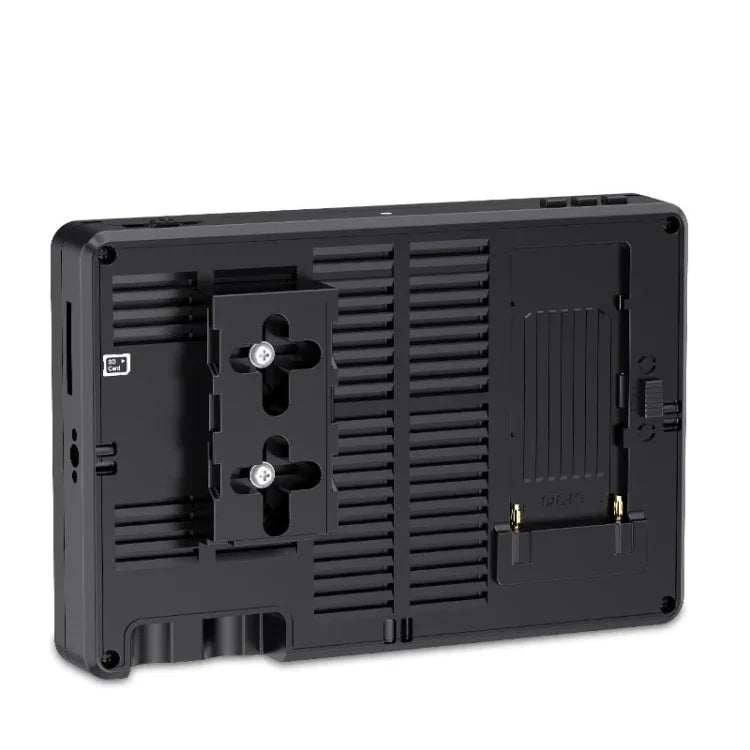

9. A Sony F970 external power supply kit design has been added to the back of the monitor. You can install wireless video transmission, photography lights, conversion boxes, or other devices that can be powered by the F970 battery directly on it, and you can use the monitor for it powered by. This innovative external power supply design reduces the photographers need for external wireless video transmission, photography lights and other equipment to supply power, which greatly saves the space occupied by the equipment and reduces the weight of the photography equipment. The kit has two cross grooves, you can adjust the position of the external device by loosening the screws. When you dont need the kit, you can directly loosen the screws and remove the kit.
10. Many times when you want to use wireless image transmission, you always suffer from not knowing where to put it on the monitor. The F970 external power supply kit not only solves this trouble, but also provides power through the Sony F970 battery or monitor. The most important thing is that this is equivalent to combining the monitor and wireless image transmission to facilitate the supervision of the director and photographer, and improve the efficiency of the crew shooting.
11. The monitor not only has fine pixels to make each picture beautiful and eye-catching, but also has an ultra-high brightness of 2200 nits, which is 4 times the brightness of a normal monitor. This allows you to be clearly visible without a hood when shooting outdoors, which brings convenience to your outdoor shooting in bright sunlight!
12. LUT7 PRO has a light sensor that can automatically adjust the screen brightness according to the surrounding ambient light. It ensures the readability of the screen in different environments and also protects your eye safety at all times. It will automatically increase the screen brightness under strong outdoor light, and automatically decrease the screen brightness under dark conditions.

Standard configuration:
1. HDMI TypeA to Mini&Micro HDMI cable x1
2. Mounting bracket x1
3. Manual x1
