IPC-7100 Video Surveillance Tester Multi-Functional Engineering Tester, US Plug, EU Plug, UK Plug, AU Plug

1. 7 inch 1920x1200P full-view IPS screen with clearer and smoother display
2. H.265/H.265+ 4K main stream test, 1200W network camera test
3. Ultra-fast ONVIF, face/plate recognition, test report, channel name modification
4. Upgraded TVI5.0 audio test, TVI/CVI/AHD full 8MP test
5. Supports batch activation, IP modification, resetting password, video obstruction alarm, etc. by Hikvision and Dahua test tools
6. Added advanced network testing functions such as IP address conflict detection and switch port detection
7. Network cable sequence detection, remote/medium/nearest error detection
8. Network cable TDR test, open/closed circuit of network cable, quality test
9. DC12V/3A, POE48V/25.5W, DC24V/2A, USB5V/2A power supply output
10. Supports HDMI signal output, maximum resolution 4K. Can output the current screen display content, and the output resolution can be switched between 1080P/720P
11. 4K 30-frame HDMI input, 2K 60-frame VGA input
12. Added Internet/local projection, supports remote control and voice intercom

Parameters
1. PoE power output: 48V PoE power output, maximum power 25.5W
2. DC 12V power output: output 12V, maximum DC current about 3A, providing temporary working power for the camera
3. DC 24V power output: output 24V, maximum DC current about 2A, providing temporary working power for the camera
4. USB 5V power output: 5V 2A power output function, can be used as a mobile phone power bank function
5. HDMI input: one HDMI input, maximum resolution supports 4K 30 frames
4K_3840 x 2160/2K_2560 x 1440p/1920×1080p/1920×1080i/720×480p/720×576p/1280×720p/1024×768p/1280×1024p/1280×900p/1440×900p etc.
6. HDMI output: one HDMI output, resolution 1080p/720p
7. VGA input: one VGA signal input, can be used as a monitor. Supports the following resolutions:
2048 x 1152P 60FPS, 1920 x 1200P 60FPS, 1920 x 1080P 60FPS, 1792 x 1344P 60FPS, 1680 x 1050P 60FPS, 1600 x 1200/900P 60FPS, 1440 x 900P 60FPS, 1360 x 768P 60FPS, 1280 x 1024/960/800/768/720P 60FPS, 1152 x 870P 60FPS, 1024 x 768P 60FPS, 800 x 600P 60FPS, 640 x 480P 60FPS
8. Display screen: 7 inch, IPS high-definition full-view capacitive touch screen, resolution 1920 x 1200
9. Network ports: 10/100/1000M adaptive, RJ45. Dual gigabit Ethernet ports
10. WIFI: built-in 2.4G wireless WIFI, maximum rate 150M, receiving images from wireless network cameras, etc.
11. WIFI analyzer: built-in WIFI analyzer, can view WIFI information, test WIFI strength, analyze channel occupancy and channel rating, etc.
12. External power supply: DC 12V (2A)
13. Battery power: built-in 7.4V polymer lithium battery, capacity 7800mAh
14. Charging: charging 4.5 hours, once charging can be used normally for 11 hours
15. Operation settings: Capacitive touch screen, Chinese, Traditional Chinese, English, Polish, Italian, Korean, Russian, Spanish, French, Japanese, German, Turkish, Serbian, Czech, Portuguese, Vietnamese OSD menu, selectable
16. Automatic standby: off/5-30 minutes
17. Working temperature: -10 degrees celsius --- +50 degrees celsius
18. Working humidity: percent30 - percent90

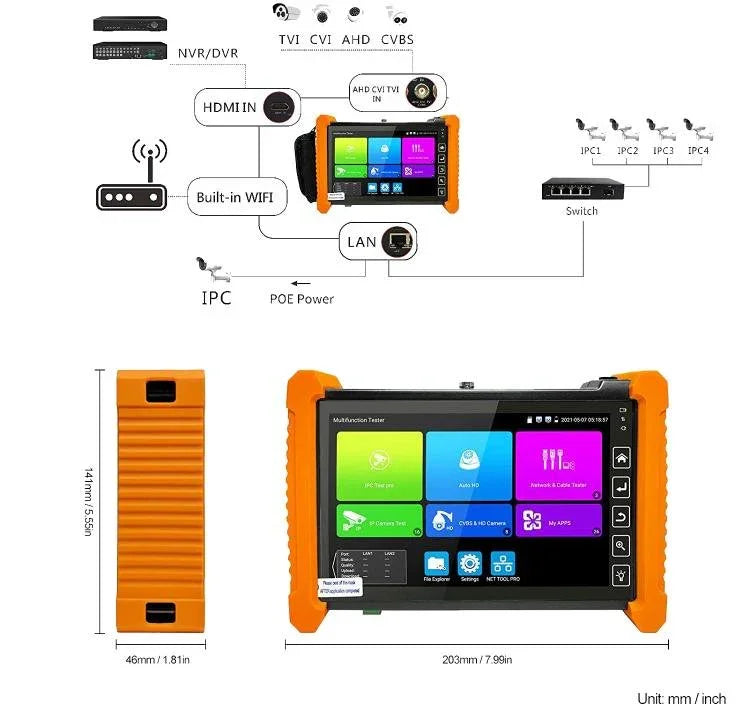

19. Size: about 20.3 x 14.1 x 4.6 cm
20. Weight: about 920g

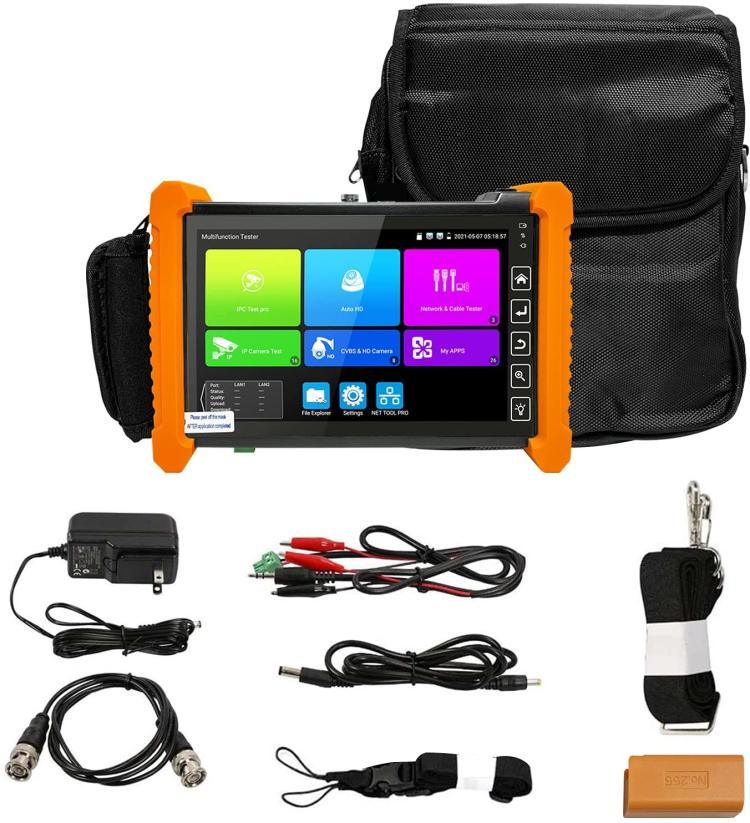

Packaging list:
- bag x 1
- tester x 1
- adapter x 1
- RS485 control cable x 1
- safety rope x 1
- BNC cable x 1
- power output cable x 1
- belt x 1
- accessories x 1
